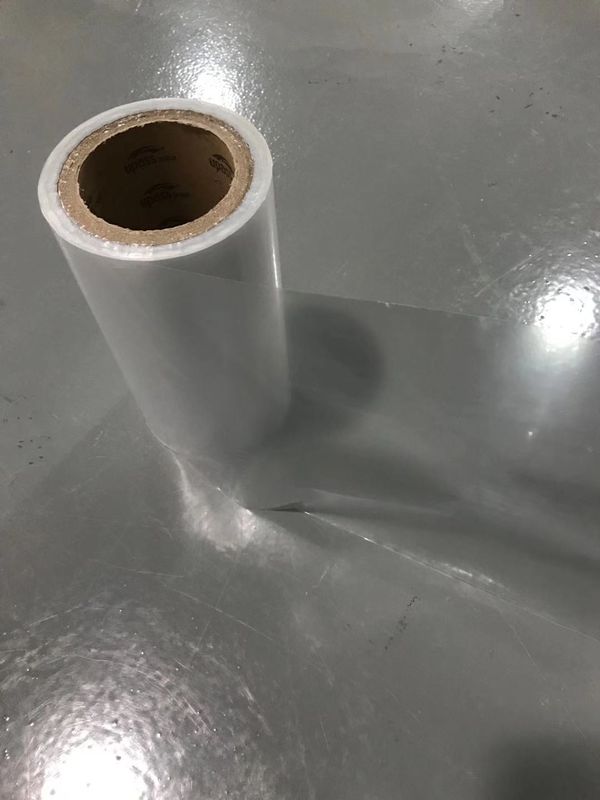

0.025mm 25 Micron Silicone Coated Polyester Film

0.025mm 25 Micron Silicone Coated Polyester Film
0.025mm 25 Micron Silicone Coated Polyester Film

Large Image :  0.025mm 25 Micron Silicone Coated Polyester Film

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: Release Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 600 Tons/Month

0.025mm 25 Micron Silicone Coated Polyester Film

Description
Name: Silicon Coated PET Release Film Modified PET Film Material: Modified PET
Thickness: 0.025-0.35mm Width: 900-1200mm
Color: Gray, Transparent Printing: Can Be Customized
Perforated: High Temperature Resistance Feature: Easy Release
Application: Used As Release Film For Waterproof And Tapes Weight: About 100Kgs/Roll
High Light:

0.025mm silicone coated polyester film

,

0.35mm silicone coated polyester film

,

0.025mm clear polyester film roll

              Silicon Coated PET Release Film Modified PET Film



Description:



It is modified polyester, we called as Modified PET release film, possesses high elongation

at break, largely ameliorates the problem of causing big and deep wrinkles at the transverse

direction while downstream production by using BOPET(Biaxially oriented PET) release film.

0.025mm 25 Micron Silicone Coated Polyester Film 0

0.025mm 25 Micron Silicone Coated Polyester Film 1





Advantages:



► High temperature resistance, up to 160℃
► High subsequent adhesion rate, up to 90%, less silicon tranfer
► It is soft than PET film, tear resistance, high strength
► More thinner, can be do at 20 micron
► No color change, easy to peel off when use
► Make the products' surface more flat
► High elongation, more than 150%



Application:



1. For Self-adhesive waterproof membranes
2. For die-cut application
3. For Self-adhesive tapes

               0.025mm 25 Micron Silicone Coated Polyester Film 2



0.025mm 25 Micron Silicone Coated Polyester Film 3





Parameter:



Item Unit Factory parameter
Thickness mm 0.025-0.028
Width mm 1060,2000
Sleeve I.D. mm 76
Max. Tensile strength N/50mm ≥150
Elongation at break % ≥150
Peeling force N/25mm ≤0.2
Subsequent adhesion rate ≥90





Company Profile:



Upass, founded in 2008, headquartered in the cluster of New Material Industrial Park,

Qingpu District, Shanghai. Upass industry is affiliated to the field of new innovative

material among top10 Made in China 2025. Upass production bases are respectively

located in Taicang, Jiangsu Province ( the 1st stage of project was in to production in

Jun.2014, covering over 36,600 Sqm., which was one of the major municipal

investment programs in Taicang city in 2012.The 2nd stage of project will be

in to production within 2020), and Chenzhou city, Hunan province.



Upass now as a governing unit of China Building Waterproof Association,

a vice chairman unit of Professional Committee of China Modified Plastic Association,

an enterprise with Triple A credibility in China Plastic Association, not only assists the

development of the relevant industries, but also upholds the conception of sustainable

development by successive technological innovation. Upass so far has acquired over

100 of intellectual property rights.
