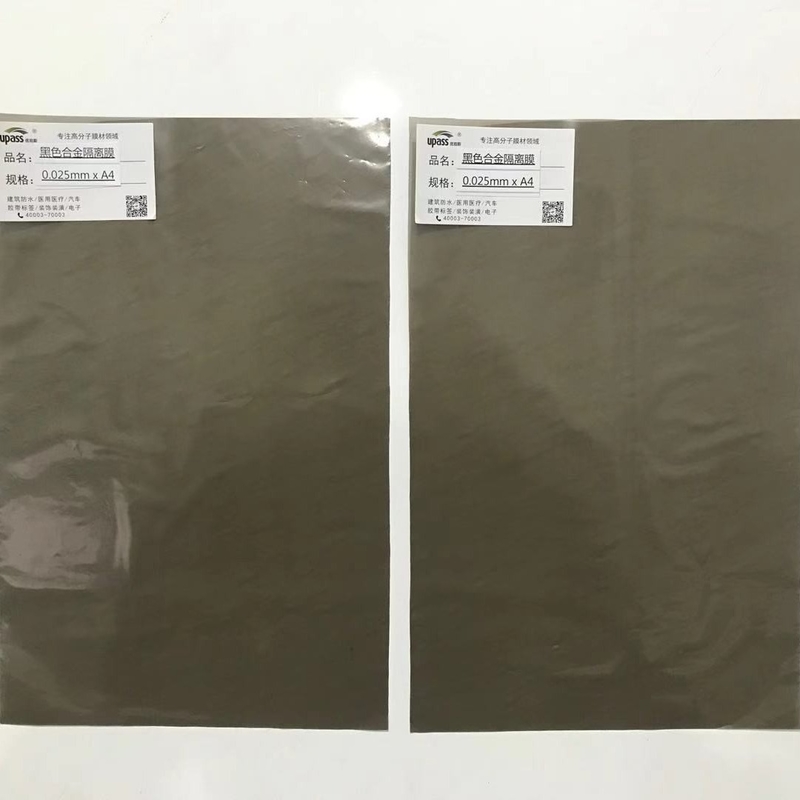

Single Silicon Coated 0.35mm 350 Micron Metalized PET Film

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

Single Silicon Coated 0.35mm 350 Micron Metalized PET Film

Single Silicon Coated 0.35mm 350 Micron Metalized PET Film
Single Silicon Coated 0.35mm 350 Micron Metalized PET Film
Single Silicon Coated 0.35mm 350 Micron Metalized PET Film Single Silicon Coated 0.35mm 350 Micron Metalized PET Film Single Silicon Coated 0.35mm 350 Micron Metalized PET Film

Large Image :  Single Silicon Coated 0.35mm 350 Micron Metalized PET Film

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: Release Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 600 Tons/Month

Single Silicon Coated 0.35mm 350 Micron Metalized PET Film

Description
Name: Single Silicon Coated Modified PET Film Material: Modified PET
Thickness: 0.025-0.35mm Width: 900-1200mm
Color: Gray, Transparent Printing: Can Be Customized
Perforated: High Temperature Resistance Feature: Easy Release
Application: Used As Release Film For Waterproof And Tapes Weight: About 100Kgs/Roll
High Light:

350 Micron Metalized PET Film

,

0.35mm Metalized PET Film

,

0.35mm silicone release film

                     Single Silicon Coated Modified PET Film



Description:



It is modified polyester, we called as Modified PET release film, possesses high elongation

at break, largely ameliorates the problem of causing big and deep wrinkles at the

transverse direction while downstream production by using

BOPET(Biaxially oriented PET) release film.



Single Silicon Coated 0.35mm 350 Micron Metalized PET Film 0





Advantages:



► High temperature resistance, up to 160℃
► High subsequent adhesion rate, up to 90%, less silicon tranfer
► It is soft than PET film, tear resistance, high strength
► More thinner, can be do at 20 micron
► No color change, easy to peel off when use
► Make the products' surface more flat
► High elongation, more than 150%



Application:

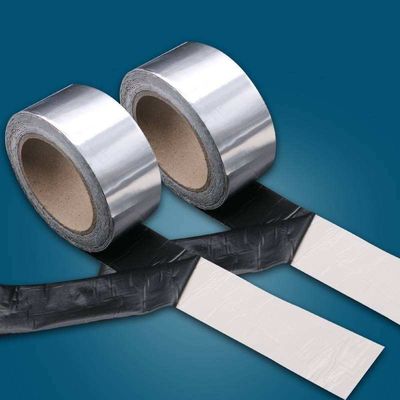

1. For Self-adhesive waterproof membranes
2. For die-cut application
3. For Self-adhesive tapes



Parameter:



Products Name PET release film Spec. 0.05mm*1000mm
Detection Methed Q/TPXP 1-2013 Date 2020.12.26
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1000±5mm 1001 Qualified
    Thickness 0.05±0.005mm 0.04935 Qualified
3

Elongation

(%)

TD

(CD)

≥40 130.5 Qualified
    MD ≥40 159.28 Qualified
4 Tensile Strength(Mpa)

TD

(CD)

≥150 226 Qualified
    MD ≥150 195 Qualified
5 Heat Shrinkage

TD

(CD)

% -0.1 Qualified
    MD   2.33 Qualified
6 Friction Coefficient uS   0.384 Qualified
    uK   0.421 Qualified
7 Haze   % 3.1 Qualified
8 Wetting Tension mN/m   58 Qualified
Detection Qualified



FAQ:



Single Silicon Coated 0.35mm 350 Micron Metalized PET Film 1


Equipment:



Single Silicon Coated 0.35mm 350 Micron Metalized PET Film 2



Service:



Single Silicon Coated 0.35mm 350 Micron Metalized PET Film 3
