Product Details:
|
| Features: | Root Penetration Resistance, UV Resistance, Tearing Resistance | Material: | High Density Polyethylene |
|---|---|---|---|
| Application: | Bitumen Waterproofing Membrane, Special Packaging, Labels, Printing | Style: | Coil,Sheet |
| Model Number: | Cross Laminated Film | Size: | 0.09mmx1250mmx2500mm |
| Craft: | Blown Film, Spiral Cutting, Printing | ||
| High Light: | 0.09mm PE Laminated Film,1250mm PE Laminated Film,0.09mm Cross Laminated Film |
||

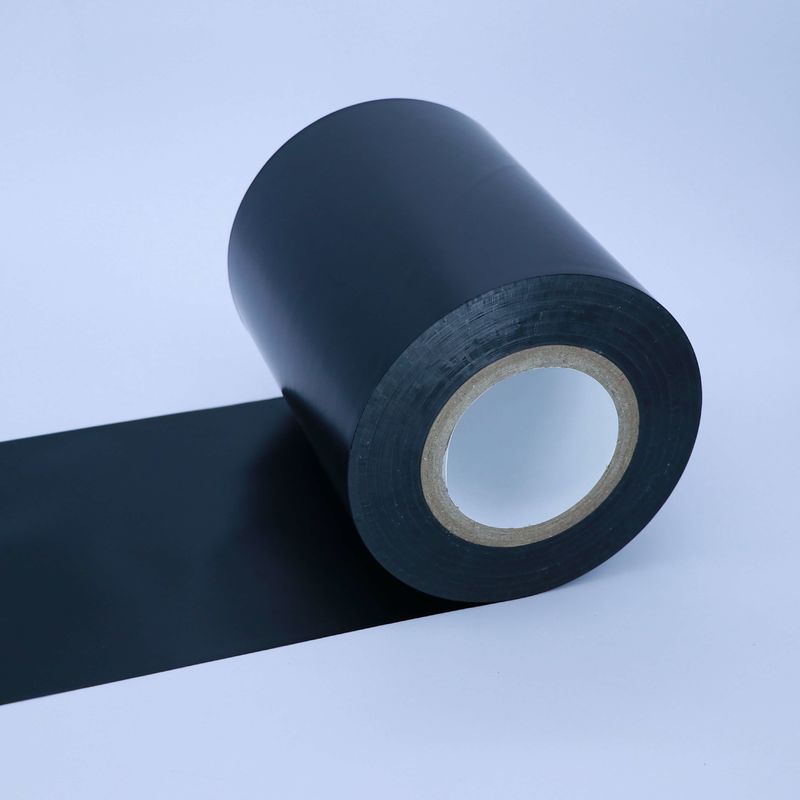

0.09mmx1250mm Root Penetration Resistance High Density Polyethylene Cross Laminated Film
Description:
It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer,
stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos,
and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45
°, and finally through cross-compositing. Due to its cross-stacking structure is different from ordinary single-layer or
multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high
elongation which are not available in traditional films.
The performance of this product is stable without deformation.
It possesses high tensile strength, elongation and superior resistance to termperature, tearing, puncure, UV and root penetration.
It has excellent water rightness(nail shank), self-healing properties as well.
With integrating a good appearance, cost saving and environmental protection, the products are largely used for bitumen based waterproofing membrane,
explosive packaging, heavy metal packaging, vairous labels, adhesive tapes, high end printing, etc.
For waterproof membranes
Parameters:
| NO. | Item | Performance | ||
| SDM-30 | SDM-60 | |||
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| MaxF/(N/50mm) ≥ | 200 | 300 | ||
| Elongation as MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 250 | |||
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
| 4 | Angle Tear Strength/N ≥ | 25 | ||
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
| 6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
| 7 | Thermal Ageing | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 80 | |||
| Elongation at MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 200 | |||
| 8 | Artificial Weathering | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 70 | |||
| Elongation at MaxF/% ≥ | 180 | |||
| Elongation at break/% ≥ | 180 | |||
