Sound Proof UV Resistance ISO9001 PDLC Smart Film

Sound Proof UV Resistance ISO9001 PDLC Smart Film
Sound Proof UV Resistance ISO9001 PDLC Smart Film

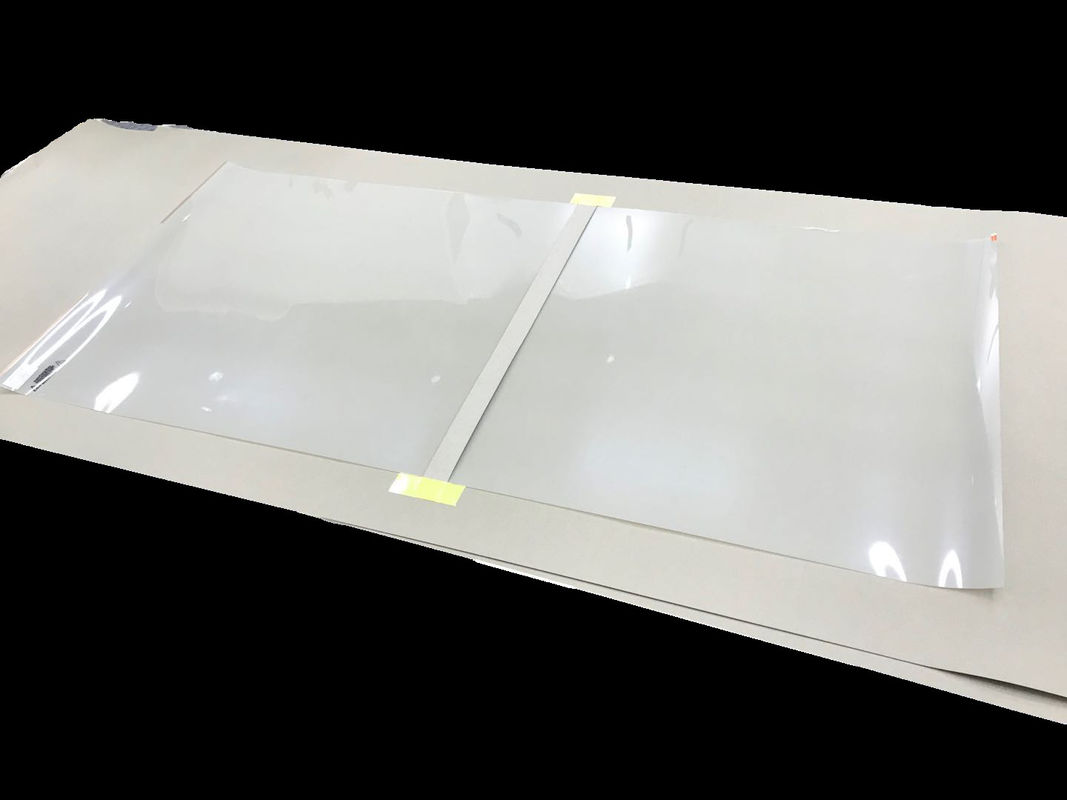

Large Image :  Sound Proof UV Resistance ISO9001 PDLC Smart Film

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: Youguang
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

Sound Proof UV Resistance ISO9001 PDLC Smart Film

Material: PDLC Thickness: 2mm-5mm
Width: 600-2000mm Can Be Customized Total Light Transmittance: Power Off >67%
Directional Light Transmittance: Power Off <4% Haze: Power Off >96%
Application: Used For The Building Of Decorating, Remodeling, Advertising Product Name: PDLC Smart Film
High Light:

ISO9001 PDLC Smart Film


UV Resistance PDLC Smart Film


5000 micron self adhesive smart film

                                               PDLC Smart Film

Product description:

STF (Switchable Transparent Film) is also known as PDLC (Polymer Dispersed Liquid Crystal) film,

electronic dimming film, electronic curtain, etc.

It is based on film technology. The rod-shaped polymer liquid crystalls mixing with prepolymer stick

to transparent conductive base material, so that it simultaneously possesses charateristics of liquild

and crystal. When powering off, polymer comes to the atomization of disorder.

With polymer powering on, it is orderly arranged along with the direction of the electric field,

which enables the film to have transmittance of the light.

By controling the electric switch, It can be converted between transparent and opaque state.



1.Privacy protection. As most important function, smart glass can be changed from transparent

   to opaque via easy model ON & OFF.
2. Perfect function of safety. As smart glass is a special kind of laminated tempered glass,

    it has all the good function of the laminated glass, mainly the security.
3. Blocks more than 99% UV rays ,avoiding fading in the room.
4. Sound proof: Sound insulation features excellent reflection, heat absorption type hollow glass,

    the middle electric control film and film have sound damping effect, can effectively block all kinds

    of noise up to 38 decibels, if add hollow, sound insulation effect is even better.
5.Projection. When it is under suitable light, the perfect projection appears.
6.No trouble of curtain setting and cleaning.
7.With a modern looking, very good for interior design.



Sound Proof UV Resistance ISO9001 PDLC Smart Film 0





The smart glass can be widely applied for office, meeting room, hotel, villa, bathroom door

and window, shower room, kitchen cabinet, glass curtain wall, technical resident conservatory,

and business building, as well as automobile skylight, exhibition hall, command, private window

of infants' room in hospital, open counter of bank, security window of automatic machine, and

special effects for briefing and business commercials and etc...




  ON 78%+/-2%
Transmittance(Visable) OFF 60.00%
Transmittance(Parellel) ON >75%
OFF <6%
Haze ON <5%
OFF >90%
Visual Angle ON >140°
UV Resistance ON >99%
OFF >99%
IR Resistance ON >15%
OFF >40%
Eletrical Test Working Voltage ON AC 48-60V
Saturation Voltage ON AC 60V
Response Time ON-OFF 200ms
OFF-ON 10ms
Power Consumption ON 6w/sqm
Mechanical Parameter Thickness 10-18mm
Maximum Size 1800*3500mm
Environmental Parameter Working Temperature -10°C - 65°C
Storage Temperature -10°C - 40°C
Service Life >50000 hours
Switch Frequency > 1000000 times
