SBS Perforated Film

SBS Perforated Film
SBS Perforated Film

Large Image :  SBS Perforated Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Surface Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

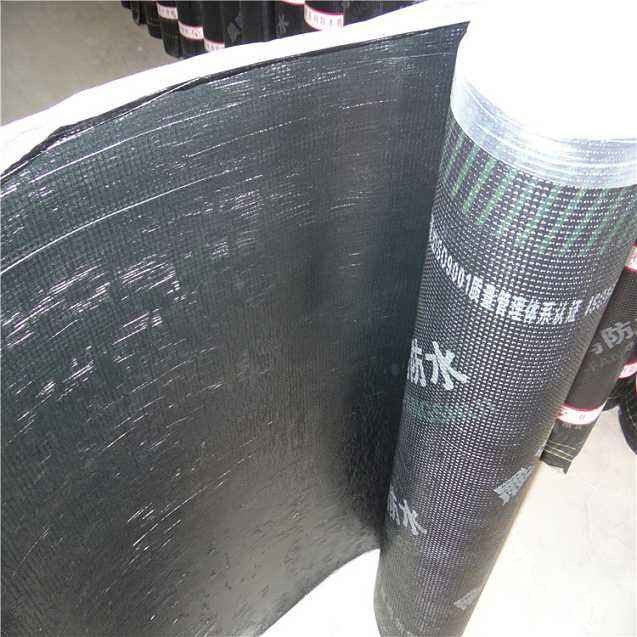

SBS Perforated Film

Product Name: SBS/APP Waterproof Application HDPE Perforated Film Material: High Density Polyethylene (HDPE)
Production Process: Film Blowing Performance: Hot Melt
Thickness: 0.007-0.035mm Width: 100-1250mm
Color: Black, White Application: Surface Film For SBS And APP Waterproof Membranes
Printing: Can Be Customizable Sample: Available
High Light:

SBS Perforated Film


0.007mm Perforated Film


0.007mm High Density Polyethylene film

        SBS/APP Waterproof Application HDPE Perforated Film




Perforated film also called thermofusible film, burn-off film, torchable polyethylene foil,

thermofusible HMHDPE film and torch-able film.

It is 3-layers blowing film, which made of High Density Polyethylene (HDPE).

It is special design as surface material for SBS Bitumen Waterproofing Membranes and

APP Bitumen Waterproofing Membranes, it will be melt when torch construction.

Films made of HDPE are noted for their characteristic rustle and milky colouring and

they are odourless.

By adding colour concentrates a lot of colour variants can be achieved and by means

of additives films with the desired properties can be produced. Unlike LDPE films, their

structure is duller, their strength is higher, they are hazier, and they are not shrinkable.

The thermal endurance of HDPE films is from −50 °C up to +110 °C. Under everyday

conditions of use HDPE films are resistant to most chemical substances, they do not

cause corrosion of the products packed in them, and they can be welded.

They have minimum permeability of water vapours and smells, and they transmit oxygen,

fats, and aromatic substances in a very limited amount. Generally, HDPE films are more

chemically resistant, which is given by their structure.
In the natural variant, HDPE films are suitable for direct contact with foodstuffs, the colour

variants only if the pigment content is within the concentration defined by the producer.

HDPE films are environmentally unobjectionable and recyclable, and they can be disposed

of in landfill or by combustion in which no substances harmful to the environment are released.


Main Fetures:


► Hot melt, torchable, easy to construction

► 7-10 microns thickness

► Environmental friendly, no residue

► Perforated performance, make the surface more flat

► More economical


NO. Item Unit Factory parameter Detection method
1 Appearance /   Q/TPXP1-2015
2 Thickness mm 0.008-0.015 GB/T 6672-2001
3 Width mm 1060-1070 GB/T 6673-2001
4 Max.Fd N/50mm 15 GB/T 328.9-2007
5 Elongation at break % 200 GB/T 328.9-2007




Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.


Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll,

       we can offer 100-200m/roll for free, but shipping cost need you to paid.


Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is 15-20 days for 20GP container.


Q4: What's your payment?

A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).


Q5: What's the usage of this film?

A5: It is special for the surface material when you producing SBS or APP bitumen

waterproofing membranes.


Q6: What's the thickness you can do?

A6: We can do as thin as 7 microns, but usually do 10 microns.


Q7: What's your production capacity?

A7: We have total 10 sets of machines, the production is about 1000 tons per month.
